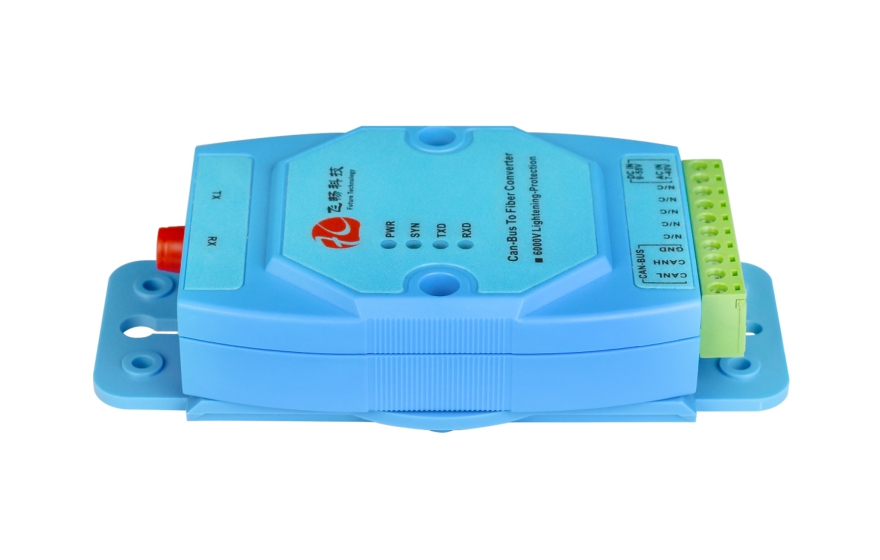

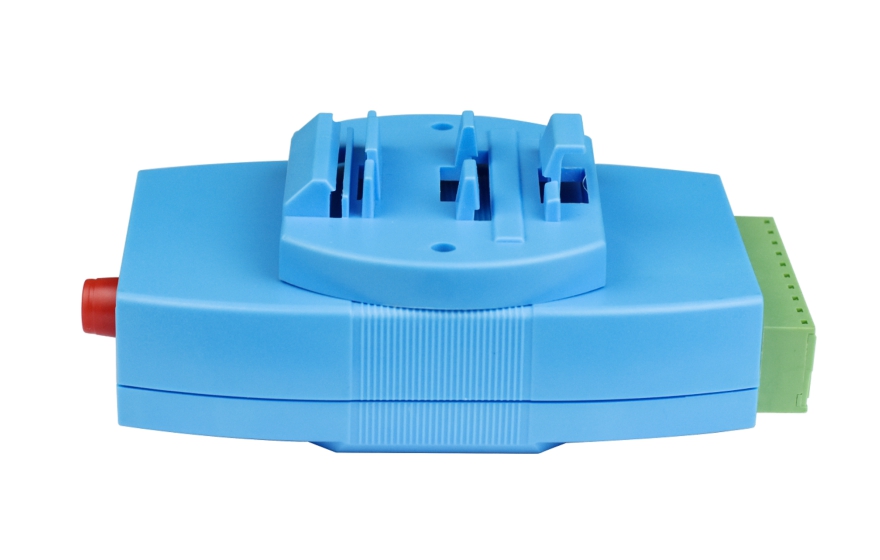

Industrial Grade 1-2 channel CAN Bus Fiber Modem

Type:FCM-C1/2 MessageShare

Description:1 fiber interface; 1~2 CAN bus interfaces;Simultaneous transmission of 1-2 CAN bus data over fiber.

Product Description

Functional Properties

Technical Parameters

Application Scheme

DataSheet Download

Product Description

The CAN fiber modem can transfer CAN bus signal to optical signal and transmit over fiber which can extend the communication distance of CAN bus. At the same time due to adopting optical fiber communication it solves the problems of electromagnetic interference ground ring interference and lightning damage and greatly improves the reliability security and confidentiality of data communications and can be widely used in various industrial control process control and traffic control applications. It is particularly suitable for banks power and departments or systems that have special requirements for electromagnetic interference.

Functional Properties

◆ based on proprietary integrated circuit;

◆ Provide 1~2 CAN bus interface an optical port;

◆ CAN transparent data transmission without any set;

◆ CAN interface Maximum number of nodes 128CAN interface rate 0-1Mbps;

◆ CAN interface speed in line with international CAN1.0 CAN2.0 standard;

◆ DC9-55V or AC7-50V wide supply that includes an automatic polarity detection function no need to distinguish positive and negative installation;

◆ Provide DIN 35mm rail mounting or wall mounting;

◆ CAN interface with lightning protection lightning reached GB / T17626.5 (IEC61000-4-5)Short circuit current wave 8 / 20μs open standard peak output voltage 6KV.

Technical Parameters

◆ Fiber

Optical port：1

Optical Fiber：Single/Dual fiber

Fiber interface：FC/SC/ST

Wavelength：850nm/1310nm Multimode；1310nm/1550nm Single mode

Receive sensitivity range：-28dBm~- 40dBm

◆ Can bus interface

Standard

Protocol: In line with international CAN1.0 CAN2.0 standard

Rate: 0～1000Kbps

Physical Interface: Industrial Terminals

CAN Definitions: CANH CANL GND

◆ Electrical and mechanical feature

Relay-free transmission distance: 20~120Km

Typical transmit power:

Single mode1310/1550nm：≥-9dBm

Multimode850nm：-18dBm

Multimode1310nm: -25dBm

System power： AC7V ～50V；DC 9V~ 55V

Power consumption： ≤2W

Size: (L × W× H) 72×125×26mm DIN Rail type

◆ Working environment

Operating temperature：-40℃—+85℃

Storage temperature： -40℃—+85℃

Working humidity： 0%—95% (No condensation）

MTBF：＞100000 hour

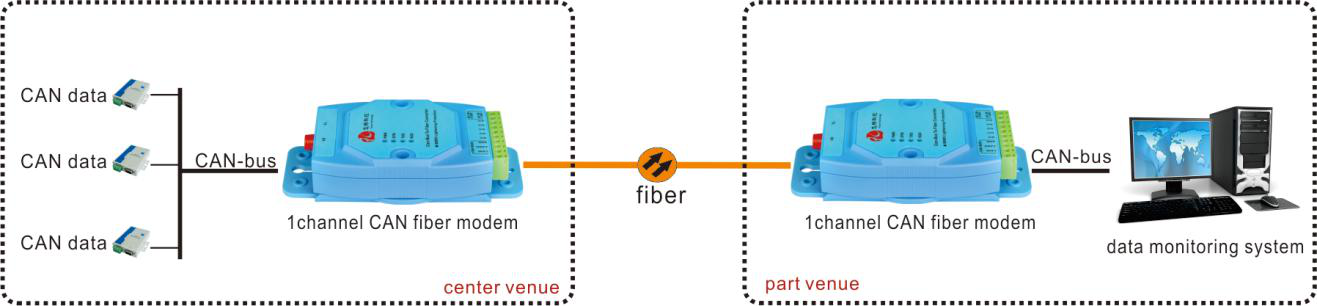

Application Scheme

Industrial Grade 1-2 ch CAN Bus Fiber Modem

DataSheet Download

Industrial Grade 1-2 channel CAN Bus Fiber Modem Specifications
