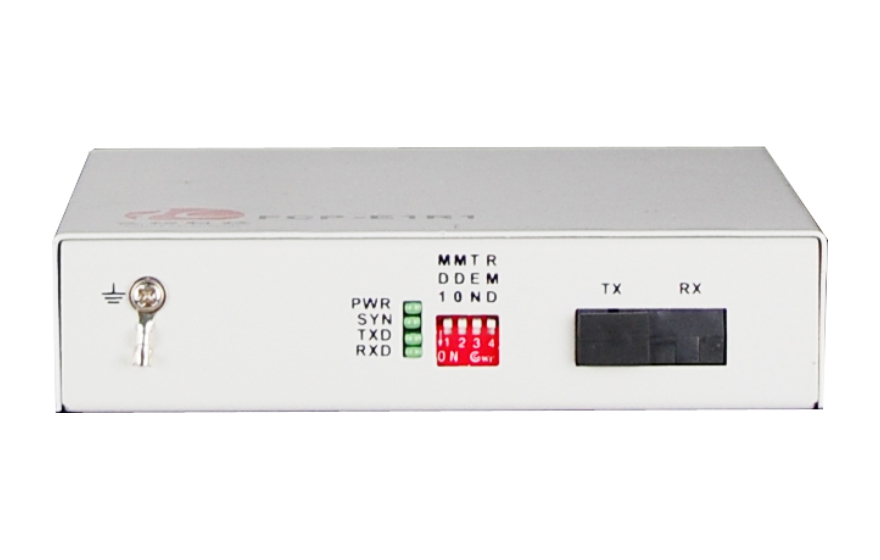

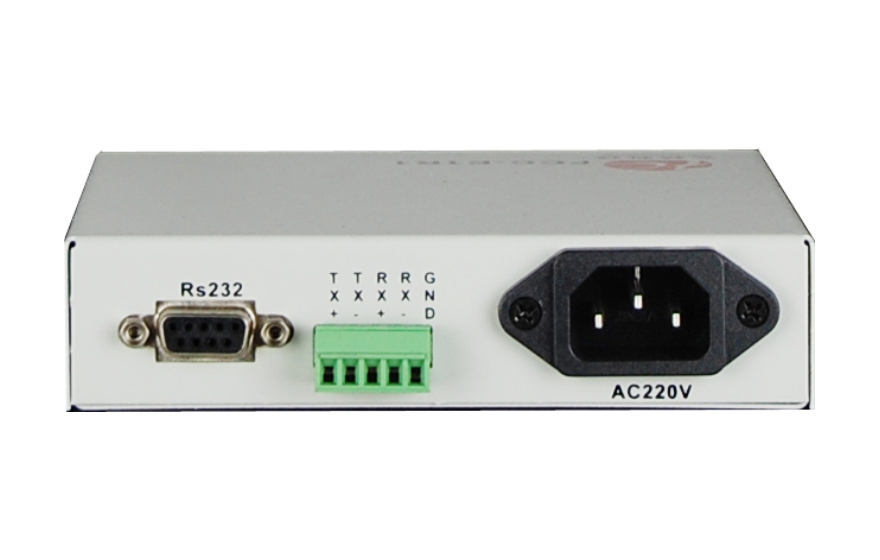

CAN BUS Fiber Modem （Desktop Type）

Type:FCP-C1 MessageShare

Description:One channel CAN fiber modem;One channel CAN fiber modem;Power supply: AC180V ~ 260VDC –48VDC +24V.

Product Description

Functional Properties

Technical Parameters

Application Scheme

DataSheet Download

Product Description

The device can achieve optical fiber CAN bus signals converted to optical signals on optical fiber transmission extended the CAN bus communication distance and because the use of optical fiber communication solve the electromagnetic interference ground loop interference and lightning damage greatly improving the reliability of data communications security and confidentiality can be widely used in various industrial control process control and traffic control and other occasions especially for banks electricity and electromagnetic interference environment departments have special requirements and systems..

Functional Properties

◆ based on proprietary integrated circuit;

◆ Provide a CAN bus interface an optical port;

◆ CAN transparent data transmission without any set;

◆ CAN interface Maximum number of nodes 128;

◆ CAN interface rate 0-500Kbps;

◆ CAN interface speed in line with international CAN1.0 CAN2.0 standard multiple power mode options: AC220V DC-48V / DC24V etc;

◆ DC-48V / DC24V power supply with automatic polarity detection function when installed without distinction between positive and negative;

◆ CAN interface with lightning protection lightning reached GB / T17626.5 (IEC61000-4-5)Short circuit current wave 8 / 20μs open standard peak output voltage 6KV.

Technical Parameters

◆ Fiber

Multi-mode Fiber

50/125um 62.5/125um

Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber attenuation (3dbm/km)

Wave Length: 820nm

Transmitting power: -12dBm (Min) ~-9dBm (Max)

Receiver sensitivity: -28dBm (Min)

Link budget: 16dBm

Single-mode Fiber

8/125um 9/125um

Maximum transmission distance: 40Km

Transmission distance: 40Km @ 9 / 125um single mode fiberattenuation (0.35dbm/km)

Wave Length: 1310nm

Transmitting power: -9dBm (Min) ~-8dBm (Max)

Receiver sensitivity: -27dBm (Min)

Link budget: 18dBm

◆ CAN Bus interface

Rate: 0-500Kbps

Interface characteristics: compliance with international CAN1.0 CAN2.0 standard

Connector: Phoenix terminal

◆ Working environment

Working temperature: -10°C ~ 50°C

Working Humidity: 5%~95 % (no condensation)

Storage temperature: -40°C ~ 80°C

Storage Humidity: 5%~95 % (no condensation)

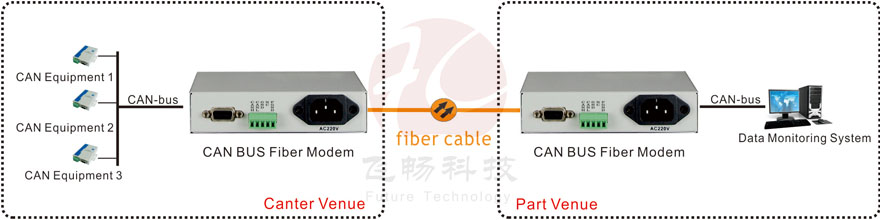

Application Scheme

DataSheet Download
