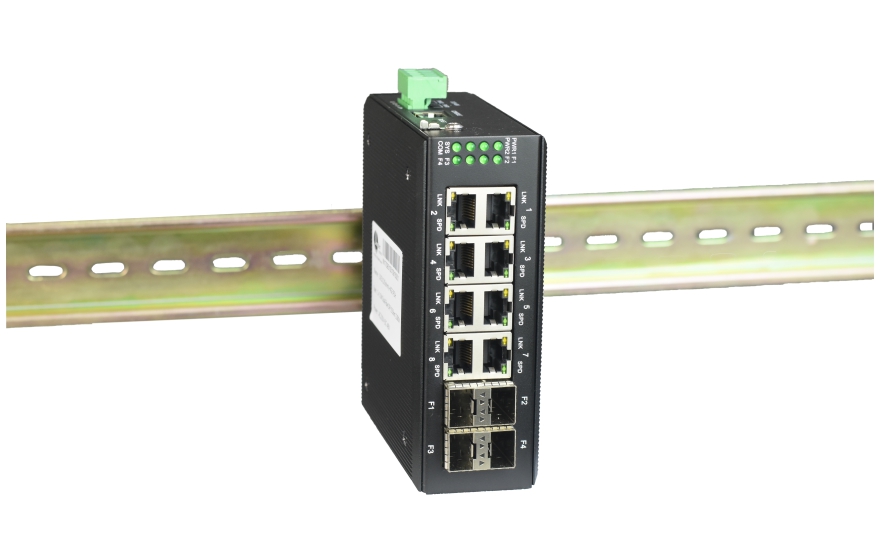

8GE+4SFP(GE) Ring Ethernet Switch

Type:ERING-FG4G8 MessageShare

Description:This series of products using industrial redundant ring network design four Gigabit optical ports can be ring you can achieve the function of the tangent ring industrial redundant ring network design is to achieve in harsh environments

Product Description

Functional Properties

Technical Parameters

Application Scheme

DataSheet Download

Product Description

This series of products using industrial redundant ring network design four Gigabit optical ports can be ring you can achieve the function of the tangent ring industrial redundant ring network design is to achieve in harsh environments the stability of data transmission Reliability and real-time. Its working principle is the physical connection into a ring structure the work of the network signal into a chain structure once the transmission cable somewhere node break the device in a very short time automatically switch to the backup line transmission. Redundant ring network structure not only reduces the risk of data transmission but also simplifies the installation of the project reducing the cost of the project.

This product provides: 4 Gigabit SFP Ethernet port; 8 Gigabit Ethernet interface;

Functional Properties

◆ Industrial rail design designed for harsh and harsh industrial environments;

◆ With broadcast storm protection balance flow isolation conflict detection error and crash from the reset function suitable for video transmission and other large flow data applications;

◆ 8 Gigabit Ethernet electrical ports 4 Gigabit SFP Ethernet interfaces Ethernet 10/100/1000Mbps adaptive MDI/MDI-X adaptive without manual adjustment;

◆ 4 Gigabit optical ports can be ring you can achieve the function of tangent ring support STP RSTP MSTP ERPS and other ring network protocol;

◆ Support a variety of fiber optic network structure: point to point star chain ring network redundancy (support multi-ring combination) and can be combined for more complex network topology to support a variety of fiber network structure;

◆ Switch built-in 4Mbit MP-SSRAM high-speed memory non-blocking design the largest backplane bandwidth 32GBit / S;

◆ Support for Access Trunk support IGMP-snooping ACL LLDP support DOS defense support for CPU protection limit send cpu message rate ARP binding (IP MAC PORT binding) support LACP dynamic aggregation;

◆ Equipment comes with WEB TELNET management platform you can upgrade online software to support DHCP snooping;

◆ Support VLAN long packet transmission can support IEEE802.1Q protocol with the switch products to use MTU ≥ 16K;

◆ Equipment comes with WEB management platform you can upgrade online software the host side can manage the working status of each slave device;

◆ Ethernet interface with lightning protection lightning protection to GB / T17626.5 (IEC61000-4-5) short-circuit current wave 10/700μs open peak output voltage 6KV standard;

◆ Support a wide range of AC and DC input (9V-48V) support for internal isolation redundant dual power input power support overload protection anti-reverse protection;

◆ Meet the requirements of industrial four electromagnetic compatibility;

◆ Super lightning protection function: anti-lightning anti-sensor high pressure anti-surge etc. no fan efficient cooling reduce the repair time;

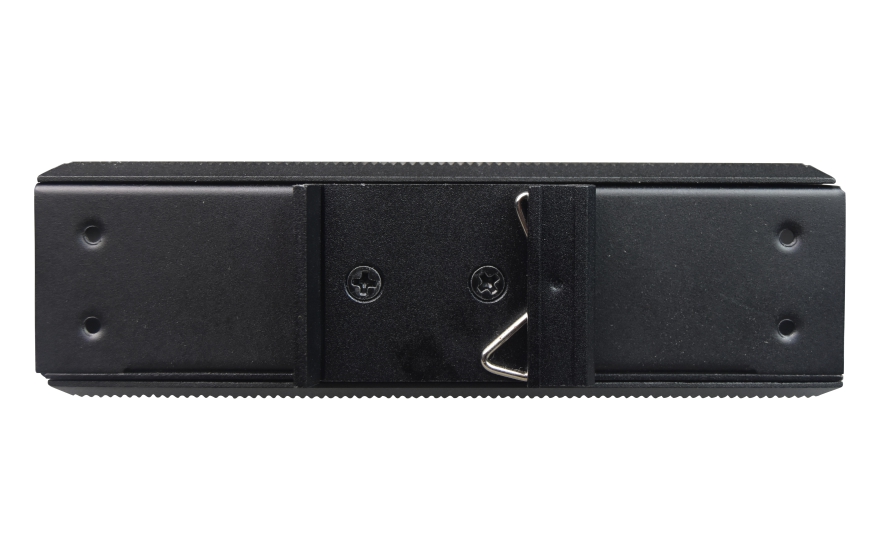

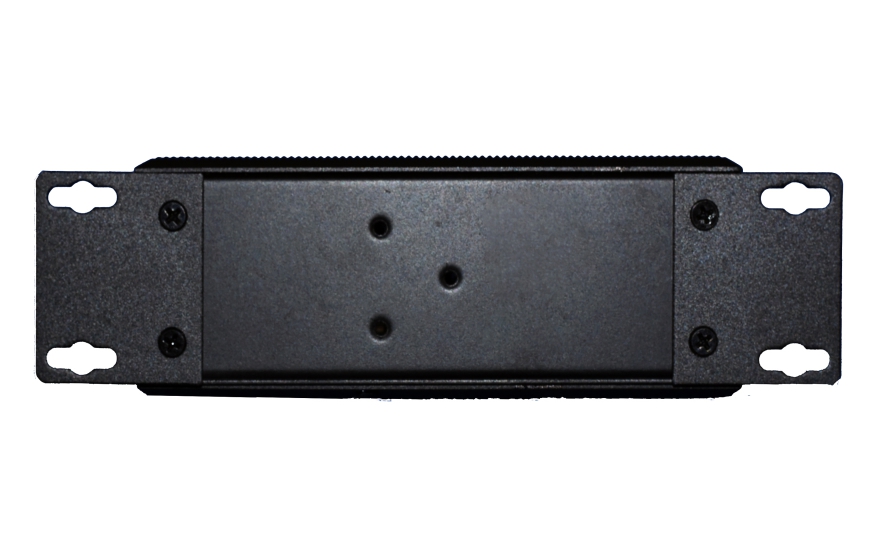

◆ Anodized aluminum alloy housing IP40 protection class able to withstand the harsh environment of the test to provide rail or wall mounted;

◆ Wide temperature type: Operating temperature -40 ℃ ~ +85 ℃;

Technical Parameters

◆ E1 Interface

Interface Standard: comply with protocol G.703;

Interface Rate: n*64Kbps±50ppm;

Interface Code: HDB3;

E1 Impedance: 75Ω (unbalance) 120Ω (balance);

Jitter tolerance: In accord with protocol G.742 and G.823

Allowed Attenuation: 0~6dBm

◆ Ethernet interface (10/100M)

Interface rate: 10/100 Mbps half/full duplex auto-negotiation

Interface Standard: Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

MAC Address Capability: 4096

Connector: RJ45 support Auto-MDIX

◆ Power

Power supply: AC180V ~ 260V；DC –48V；DC +24V

Power consumption: ≤10W

◆ Dimension

Product Size: Mini Type 216X140X31mm(WXDXH)

Simple packaging: 274X193X84mm(WXDXH)

Piece Weight : 1.25KG

◆ Working environment

Working temperature: -10°C ~ 50°C

Working Humidity: 5%~95 % (no condensation)

Storage temperature: -40°C ~ 80°C

Storage Humidity: 5%~95 % (no condensation)

Application Scheme

DataSheet Download
